Simulator

%load_ext autoreload
%autoreload 2

Filter

from supy.simulator import Filter

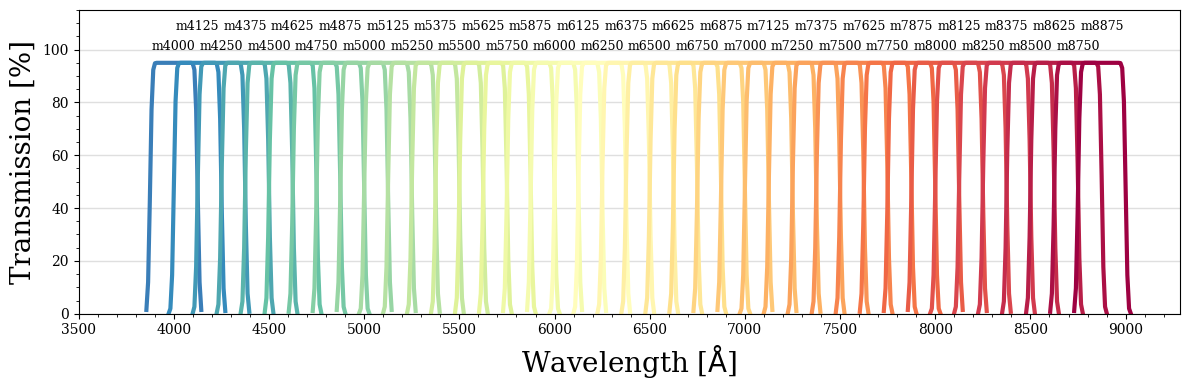

7DT filterset by default

filt = Filter()
filt.plot_filterset()

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Transmission [%]'>

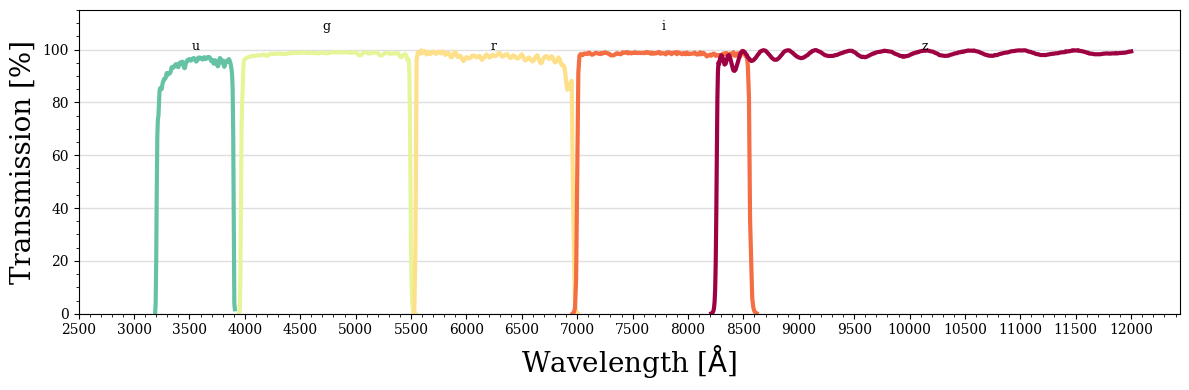

SDSS filterset

filt = Filter(filterset="sdss")
filt.plot_filterset()

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Transmission [%]'>

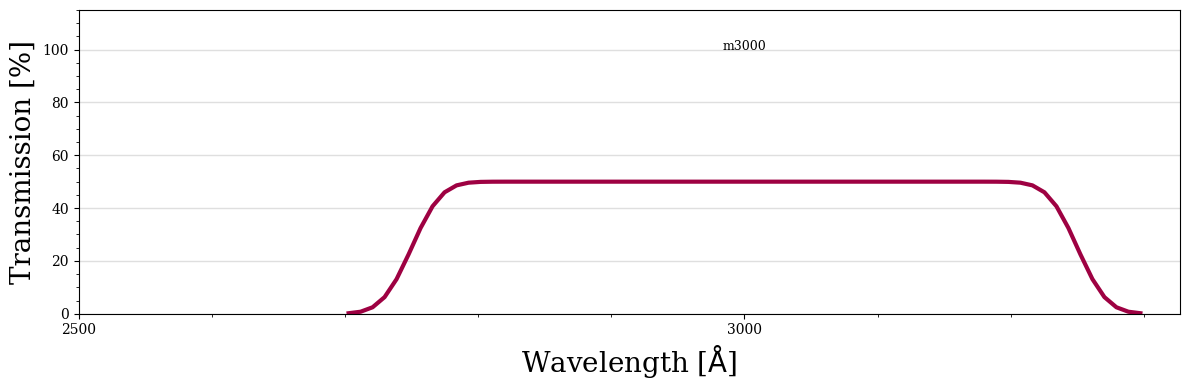

Manual tophat filterset

filt = Filter(filterset="tophat", bandmin=3000, bandmax=3500, bandwidth=500, bandstep=500, bandrsp=0.5)
filt.plot_filterset()

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Transmission [%]'>

Filter info

filt = Filter()
filt.filterset

Table length=1000

wavelength	m4000	m4125	m4250	m4375	m4500	m4625	m4750	m4875	m5000	m5125	m5250	m5375	m5500	m5625	m5750	m5875	m6000	m6125	m6250	m6375	m6500	m6625	m6750	m6875	m7000	m7125	m7250	m7375	m7500	m7625	m7750	m7875	m8000	m8125	m8250	m8375	m8500	m8625	m8750	m8875
float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64
1000.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1009.009009009009	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1018.018018018018	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1027.027027027027	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1036.036036036036	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1045.045045045045	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
9945.945945945947	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
9954.954954954956	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
9963.963963963964	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
9972.972972972973	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
9981.981981981982	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
9990.990990990991	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
10000.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0

Response

from supy.simulator.response import *

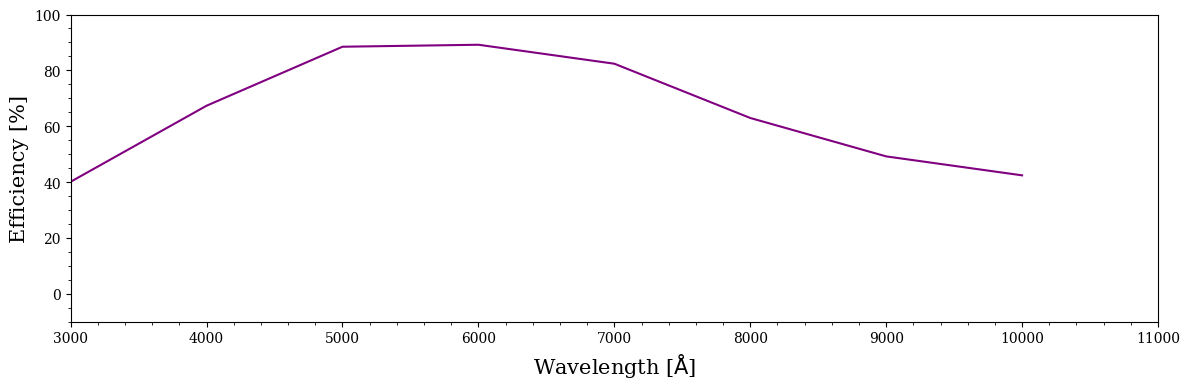

Optics

plot_table(get_optics())

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Efficiency [%]'>

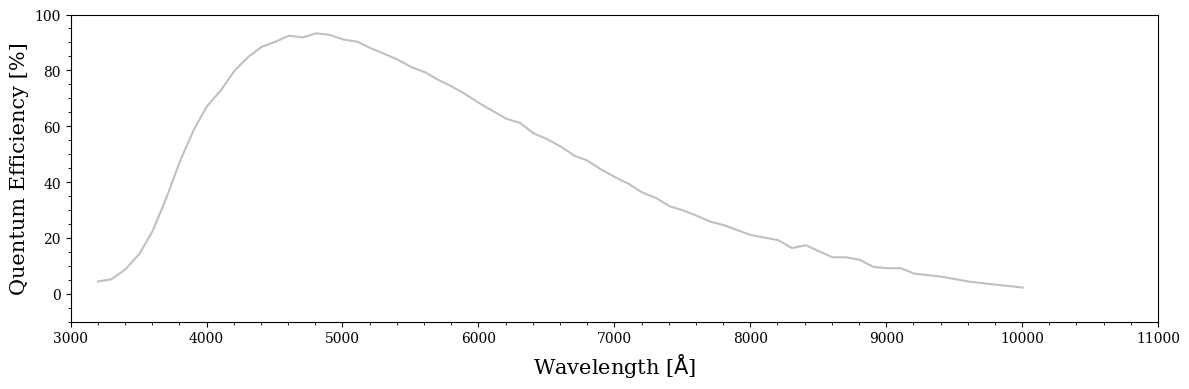

Quentum efficiency

plot_table(get_QE_factor())

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Quentum Efficiency [%]'>

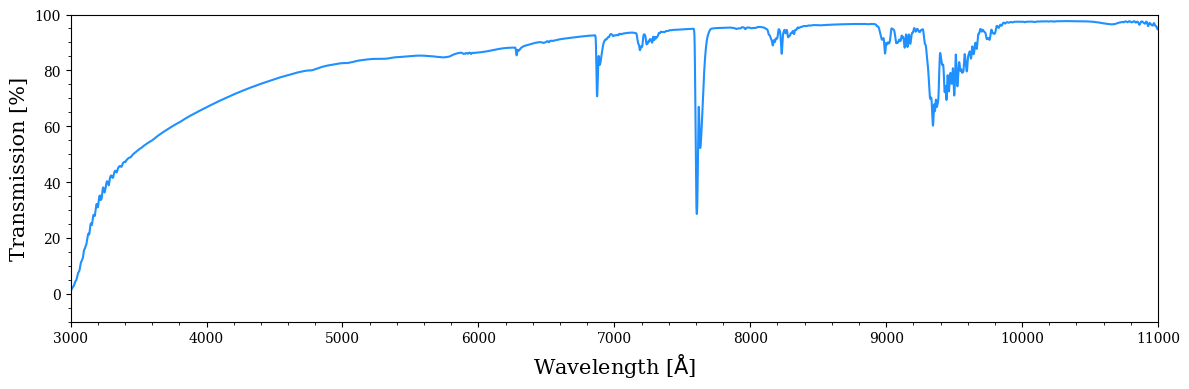

Sky transmission

plot_table(get_sky_transmission())

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Transmission [%]'>

Simulator

from supy.simulator import Simulator

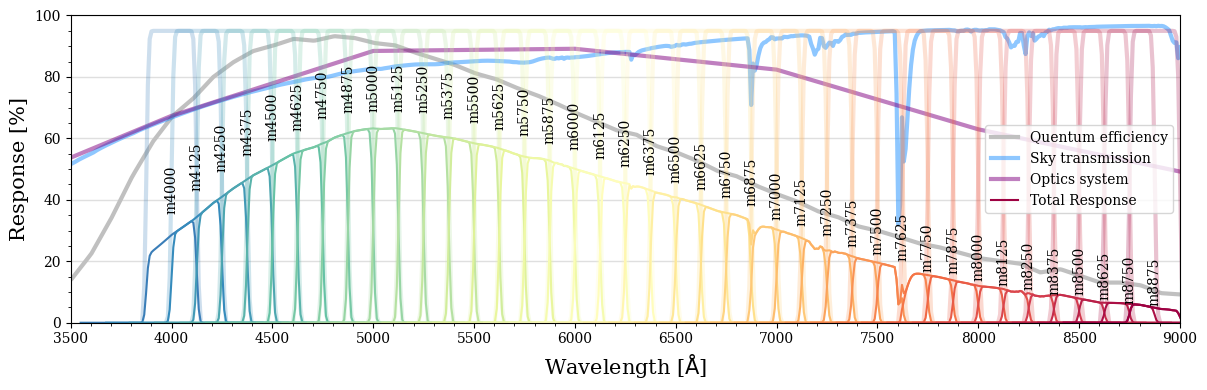

Plot response curve

sdt = Simulator()
sdt.plot_response()

Adopt the default 7DT filterset

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Response [%]'>

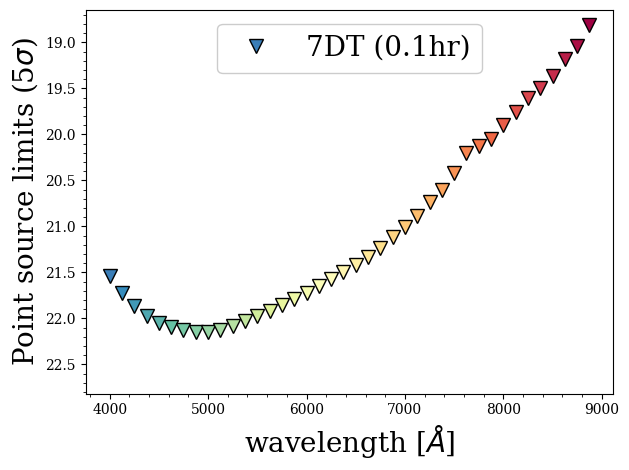

Calculate sensitivity

exptime = 300
seeing = 1.5

sdt.initalize(exposure=exptime, fwhm_seeing=seeing)
sdt.plot_point_source_depth()

<Axes: xlabel='wavelength [$\\AA$]', ylabel='Point source limits (5$\\sigma$)'>

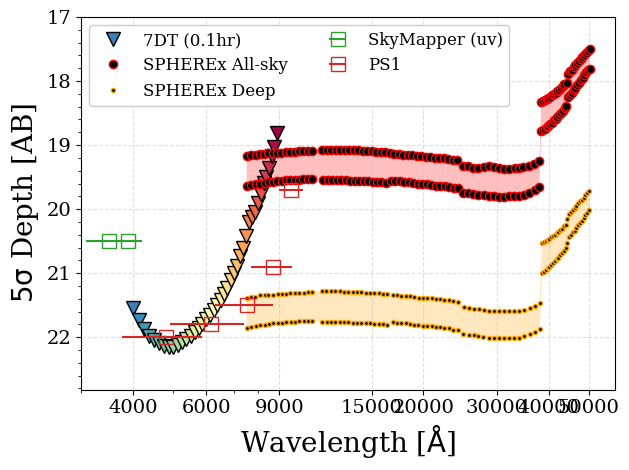

Compare with others

sdt.plot_point_source_depth(add_comp=True)

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='$\\rm 5\\sigma$ Depth [AB]'>

Synthesize photometry

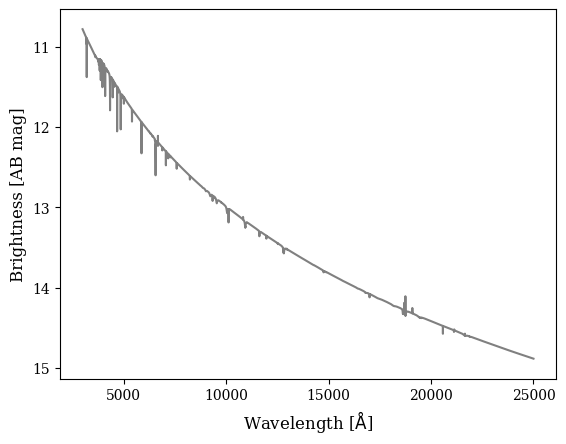

Example 1: Feige110

data = utils.get_testdata("Feige110")
utils.plot_data(data)

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Brightness [AB mag]'>

sdt.get_synphot(data)
sdt.synth_table

Table length=40

filter	lam	bandwidth	mag_abs	z	snr	mag_app	mag_obs	mag_err	fnu_obs	fnu_err	fnu	flam_obs	flam_err	flam
	Angstrom					mag(AB)	mag(AB)	mag(AB)	uJy	uJy	uJy	erg / (Angstrom cm2 s)	erg / (Angstrom cm2 s)	erg / (Angstrom cm2 s)
str5	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64
m4000	4010.913	250.000	11.252	nan	1091.397	11.252	11.253	0.010	114511.282	104.922	114611.690	2.1339409906559762e-13	1.955238465475569e-16	2.135812117017625e-13
m4125	4134.015	250.000	11.279	nan	1176.246	11.279	11.278	0.010	111862.735	95.101	111838.117	1.9622848187077405e-13	1.6682601389167712e-16	1.9618529704255485e-13
m4250	4257.559	250.000	11.335	nan	1226.885	11.335	11.335	0.010	106161.312	86.529	106136.751	1.7557623371543897e-13	1.4310728836013931e-16	1.755356125006737e-13
m4375	4380.872	250.000	11.389	nan	1258.487	11.389	11.390	0.010	100894.542	80.171	100997.574	1.5760398445176519e-13	1.2523295199777686e-16	1.5776492701208275e-13
m4500	4504.837	250.000	11.426	nan	1281.573	11.426	11.425	0.010	97734.663	76.261	97612.463	1.4438139474451135e-13	1.126595072742437e-16	1.4420087230842624e-13
m4625	4628.747	250.000	11.482	nan	1278.294	11.482	11.482	0.010	92701.894	72.520	92745.254	1.2971265868506703e-13	1.014732697952565e-16	1.2977333016261817e-13
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
m8250	8245.499	250.000	12.611	nan	235.541	12.611	12.615	0.011	32660.034	138.660	32787.162	1.4401357192167532e-14	6.114172685994745e-17	1.4457414292417476e-14
m8375	8373.650	250.000	12.640	nan	221.217	12.640	12.643	0.011	31815.560	143.821	31915.591	1.360287250406281e-14	6.149120164062451e-17	1.3645641031284661e-14
m8500	8492.617	250.000	12.668	nan	205.446	12.668	12.665	0.011	31190.388	151.818	31110.676	1.2964578099448763e-14	6.310464024886764e-17	1.2931445039660473e-14
m8625	8620.801	250.000	12.698	nan	186.034	12.698	12.696	0.012	30318.277	162.972	30265.662	1.2230098871180437e-14	6.57412675912755e-17	1.2208874182704116e-14
m8750	8745.072	250.000	12.726	nan	171.782	12.726	12.722	0.012	29584.995	172.225	29471.531	1.1597528721711906e-14	6.751325274182963e-17	1.15530500454629e-14
m8875	8864.730	250.000	12.753	nan	152.915	12.753	12.741	0.012	29092.407	190.252	28748.377	1.1098629740775339e-14	7.258048117520959e-17	1.0967383790341948e-14

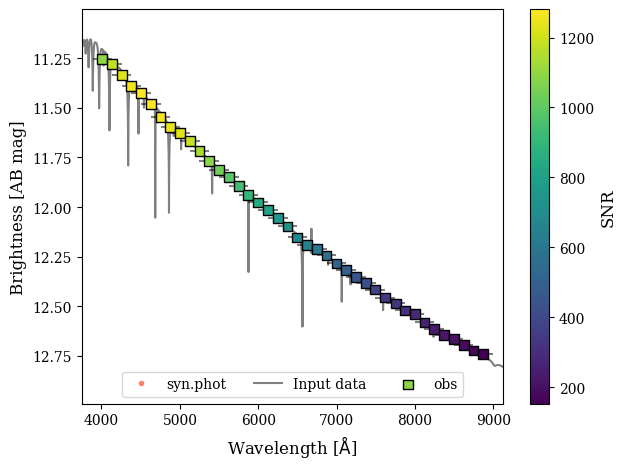

sdt.plot_syn_spectrum(add_data=True)

<Axes: xlabel='Wavelength [$\\rm \\AA$]', ylabel='Brightness [AB mag]'>

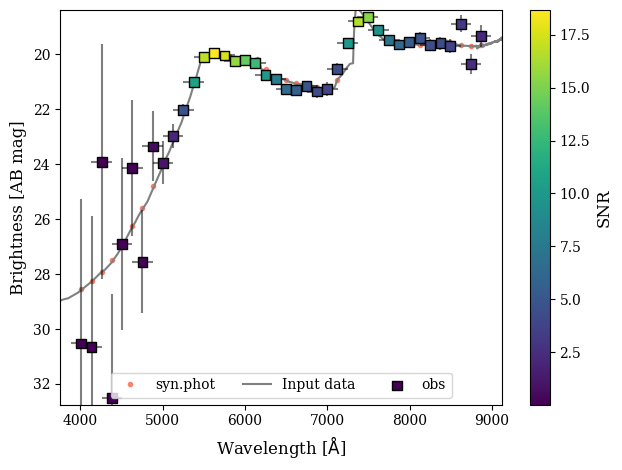

Example 2: High-z QSO Model

data = utils.get_testdata("Highz_QSO")
sdt.get_synphot(data, show_plot=True)

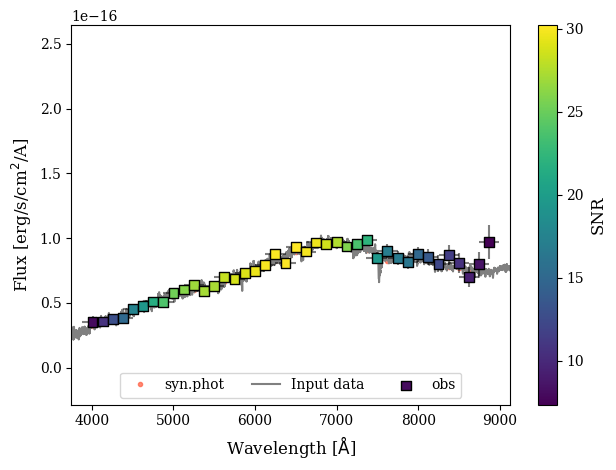

Example 3: Kilonova spectrum

data = utils.get_testdata("AT2017gfo_2.4d")
sdt.get_synphot(data, show_plot=True, flux_unit="flam")
